SWT



You will need a SWIM Terminal SWT for each lane. If you use touch pads on both ends of the swimming pool, then you will need one SWT on both ends of each lane.

The SWT is connected with the SWIM Controller SWC through an RS 485 bus. The SWC has two RS 485 buses and on each bus you can connect up to 10 SWT's.

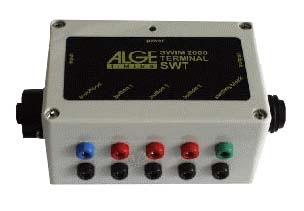

On each SWT you can connect a touch pad, up to three push buttons (manual timing), and the false start detector (Starting Block or Relay Pad).

The SWT gets its power directly form the SWC. The last SWT needs a Teminator (SWT-END).
