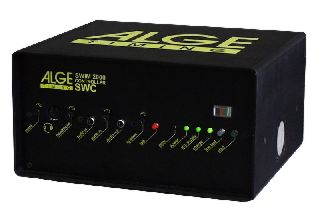

SWIM Controller SWC
The

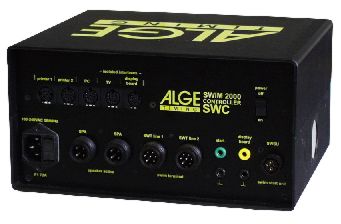

ALGE SWIM Controller SWC is the main component between the PC and the
SWIM-System. The SWC communicates with the PC through the RS 232 interface and with the
SWIM Terminals SWT by RS 485 interface. The SWC controls the display board
and stores
the all the data for a race in memory.
Built into the SWC is an
amplifier for the speaker system. Using the Start Unit SU you can trigger the
start, give start commands to the swimmers, or talk to the operator of the SWIM
2000 system using
a Headset Q34.
If you want a printed
protocol of each race you can also attach a Printer P4 which will record each
timing impulse chronologically.
