SWIM DISPLAY

The display board consists of electromagnetic bi-stable elements. This system has the advantage of a low power consumption, it is needs no maintenance, and work very reliable with a long life time.

There are a number of options to choose from. ALGE offers different digit sizes. The smallest is 15 cm high and readable at about 60 m. The medium size is 25 cm and readable at about 100 m. The largest is 45 cm and readable over a distance of about 160 m. In the models described below, replace the figure height with xx. You can purchase each model in any figure height.

Using a single Display Board GAZ4 8xx S:

One display board is used for all competitors. The display board shows during the event the running time. The intermediate time it shows of the leader (with rank and lane). When the swimmer finish the race it shows the winners time (with rank and lane). Afterwards you can scroll from rank to rank.

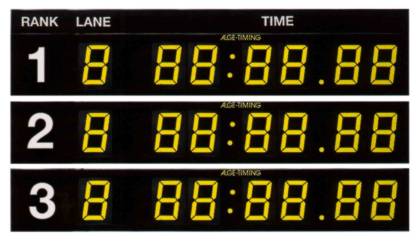

Using a bank of Display Board GAZ4 7xx S:

A separate display board is used for each lane. The display board shows during the event the running time. At the intermediate time it shows the intermediate ranking list. At the end of the race it shows the final ranking list. The ranking list also shows the lane of the competitor. The rank is a fixed digit. Lists are always shown in order of rank.

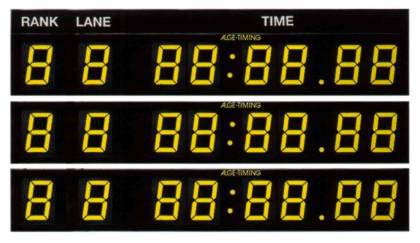

Using a bank of Display Boards GAZ4 8xx S:

A separate eight digit display board is used for each lane. The display board shows during the event the running time. At the intermediate time it shows the intermediate ranking list and at the end of the race it shows the final ranking list. In the ranking list shows also the lane and rank. The list can be in order of rank or lane.
