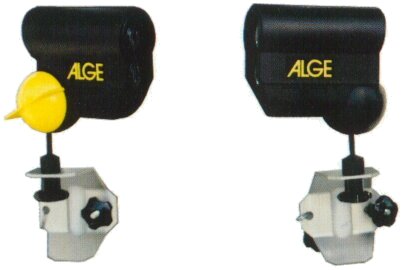

PHOTOCELL RLS1ND

features:

• A premium transmit-receive photocell system

• Shoots up to 150 meters! Ideal for all applications, interval-timing stations, speed traps, or locations where safety requires that cells be located outside fencing etc. (Click here for shorter-range RLS1n photocell/reflector model)

• Uses standard "C" cells or external battery pack

• Battery Strength / Signal (beam alignment) indicator

• New design incorporates ON/OFF switch, DIN connector, and banana jacks on rear of unit

• Heavy duty molded plastic case with retractable visor

• Easy to aim

• Oversized tensioning grips

• Mounts to standard ALGE chain bracket

• 3 power options:

  • internal power uses standard "C" cells (alkaline or NiCd);

  • external battery pack for prolonged use;

  • can be powered from the timer via a 3-conductor signal & power cable

• Internal battery life: about 40 hours using alkaline or 18 hours using NiCd

• Adjustable impulse length from 20ms to 1400ms

• The only photocells where each unit can be used in ALL the following configurations: as a Transmitter, as a Receiver, TX/RX with reflector using the Transmitter, TX/RX with reflector using the Receiver (battery switch ON, other switch set on "Adjust"). We have even used 2 Receiver units as a complete TX/RX set by setting the Transmitter (unwired) side switch to "Adjust" and the Receiver (wired) side switch to "Race". These cells are fantastic.

standard package:

• Transmitter unit

• Receiver unit

• Fastening bracket (chain-type) for each photocell

• Photocell cable 001-10 (10 Meter stop cable)



accessories:

• External battery cable 028-02 (7 to 30 V) with potential free contact

• Tripods for photocell and reflector

• Case with foam-insert for photocell and accessories (TN 622)

• Start cable 002-10 (standard 10 m, on request up to 100 m)

• Intermediate time cable 003-10 (standard 10 m, on request up to 100 m)

• Stop cable 001-10 (standard 10 m, on request up to 100 m)
