PHOTOCELLS RLS1N



features:

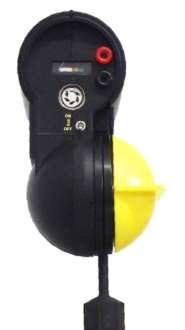

• New design incorporates ON/OFF switch, DIN connector, and banana jacks on rear of unit

• Shoots up to 25 meters -- ideal for everyday use or for interval-timing stations, speed traps, etc.
  (Click here for longer-range RLS1nd Transmitter-Receiver model)

• 3 power options: 1) internal power uses standard "C" cells (alkaline or NiCd); 2) external battery pack for prolonged use; 3) can be powered from the timer via a 3-conductor signal & power cable

• Internal battery life: about 40 hours using alkaline or 18 hours using NiCd

• Adjustable impulse length from 20ms to 1400ms

• Battery Strength / Beam Alignment indicator

• Heavy duty molded plastic case with retractable visor

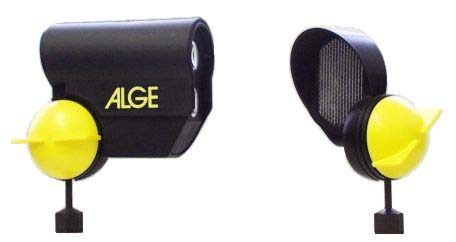

• Simple to align with reflector

• Oversize tensioning grips

• Mounts to standard ALGE chain bracket

standard package:

• Transmitter / receiver unit

• Reflector with socket joint

• Fastening bracket for photocell and receiver

• Photocell cable 001-10 (10 Meter stop cable)

accessories:

• External battery cable 028-02 (7 to 30 V) with potential free contact

• Tripods for photocell and reflector

• Case with foam-insert for photocell and accessories (TN 622)

• Start cable 002-10 (standard 10 m, on request up to 100 m)

• Intermediate time cable 003-10 (standard 10 m, on request up to 100 m)

• Stop cable 001-10 (standard 10 m, on request up to 100 m)
