ALGE GAZ 4 display boards are a clear and highly visible way to display timing and result information at your event.
Available in many configurations to suit your needs, the GAZ 4 displayboard is made to take the harshest conditions that many outdoor sports endure.
You can display numerical data such as time, speed, width, height, marks, points, weight, price, winning numbers, rates of prices, and so on.
Information can be displayed from all ALGE devices and other brands of timing equipment as well as by serial connection from your PC, so there are endless applications for the GAZ 4.
Optional internal batteries allow long periods of use when no mains power source is available.
Three to eight digit models available
Digits are easily added or removed to suit your needs
Direct hook up to ALGE timing units by a two lead data wire or radio using bannana plug connectors
Accepts manual commands (points, rankings, times) from ALGE Timy, Comet, S4, TdC4000, TdC8000, etc.
Counter together with ALGE COMET (e.g. for turnstile)
Accepts RS232 input to allow for the display of virtually anything (via PC-based software)
Extremely low power consumption; optional onboard 12VDC batteries may be charged during use
Commutator for three different display-configurations in timing: number / rank, minutes - seconds - 1/100 seconds, hours - minutes - seconds
Switch to adjust address or special function

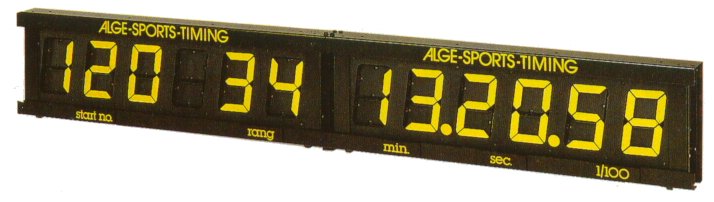

Two or more display boards can be lined up in a row (e.g. one display board for timing and another for number and ranking)
Up to ten lines can be stacked for a huge ranking display board
An integrated electronic clock makes it possible to use the display board as a day time clock or as a stop watch (input of time respectively start-stop signal and reset signal with a hand switch)
Backwards running clock (countdown) to display the time of play (input of time to play and time-out by hand switch)
Optimal legibility even in direct sunlight
Long life because of the usage of bistabile seven-segment displays in strong aluminum-frame with Plexiglas plane
Best running safety because of CMOS technology and quality by ALGE TIMING
Low power consumption because energy is only needed at the moment of swithing
Three different ways to supply the display board:
from a 12 V car battery
from the mains (PS4 or PP4)
from internal rechargeable batteries (PP4)
Operation without an external power supply is possible because of built in powerpack (NiCad rechargeable batteries and net-charging-unit)
Virtually indestructible aluminum housing with lexan face
Extremely weather resistant
GAZ displays can be made in almost any configuration from 3 - 8 digits and 15cm, 25cm or 45cm in height
|Part No (inc. Nicads add +PP4)||Configuration|
|GAZ4315 (+PP4)||Display Board 3 digits, 15 cm|
|GAZ4415 (+PP4)||Display Board 4 digits, 15 cm|
|GAZ4515 (+PP4)||Display Board 5 digits, 15 cm|
|GAZ4615 (+PP4)||Display Board 6 digits, 15 cm|
|GAZ4715 (+PP4)||Display Board 7 digits, 15 cm|
|GAZ4815 (+PP4)||Display Board 8 digits, 15 cm|
|GAZ4325 (+PP4)||Display Board 3 digits, 25 cm|
|GAZ4425 (+PP4)||Display Board 4 digits, 25 cm|
|GAZ4525 (+PP4)||Display Board 5 digits, 25 cm|
|GAZ4625 (+PP4)||Display Board 6 digits, 25 cm|
|GAZ4725 (+PP4)||Display Board 7 digits, 25 cm|
|GAZ4825 (+PP4)||Display Board 8 digits, 25 cm|
|GAZ4345 (+PP4)||Display Board 3 digits, 45 cm|
|GAZ4445 (+PP4)||Display Board 4 digits, 45 cm|
|GAZ4545 (+PP4)||Display Board 5 digits, 45 cm|
|GAZ4645 (+PP4)||Display Board 6 digits, 45 cm|
