TIDO
Docking Station for Timy

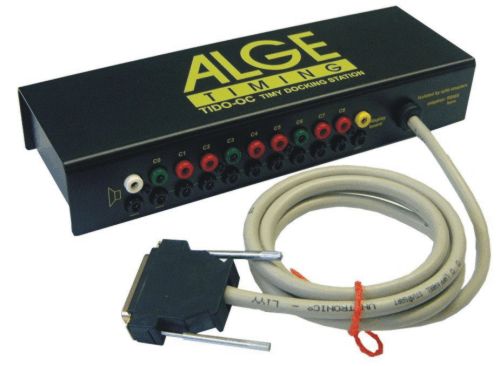

The TIDO is a docking station for the TIMY (connection to D-Sub 25 pole plug). The TIDO has all connections as sockets available, that you have available through the D-Sub 25 pole plug. Additional the TIDO has a built in speech amplifier that allows you to connect the headset for a speech connection to the start.
We recommend the TIDO if the TIMY is used a desktop device for bigger races.

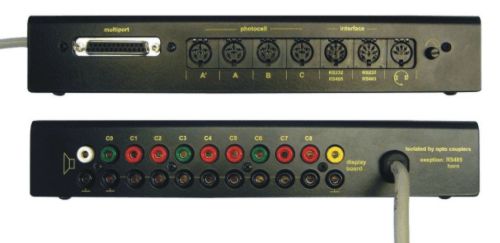

The TIDO has the following connections:
- 1 x Multiport (like on the TIMY)
- 2 x DIN-socket for photocell with channel 0, 1, and 2
- 1 x DIN-socket for photocell with channel 3, 4, and 5
- 1 x DIN-socket for photocell with channel 6, 7, and 8
- 2 x DIN-socket for RS 232 interface (PC) and RS 485
- 1 x DIN-socket for headset
- 1 x dial for volume of headset
- 1 x Pair of banana socket to connect a speaker (output)
- 9 x Pair of banana socket (channel 0, 1, 2, 3, 4, 5, 6, 7, and 8)
