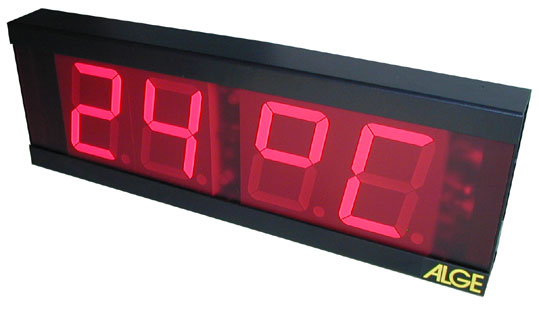

The D-SAT series of multi-function electronic clocks provide a precise and elegant display of time using bright LED characters with an unrivaled flexibility of operation in the most demanding timing applications.

Download User Manual in .pdf form
(Tip: Right click link and "Save Target As..."  to your computer)

DESCRIPTION:

• Available in many sizes 57, 100, 150, 250, 300, 450, 600, 900mm.
• 4 or 6 digits.

• Standard digits color: Red. Available on demand: Yellow, Green, Blue or White.
• Indoor, outdoor or super outdoor models (visible under direct sunlight, wide viewing angle)
• Displays time, date and (optionally) temperature or Relative humidity
• 2 alarm programs, each program up to 50 alarm times (optionally)
• Time adjusting - one taster placed onto the case or using external synchronization: DCF, GPS, Ethernet
• High precision time (internal real time clock)
• No need for time adjusting after power failures
• Case color: standard - black, all other colors available on demand
• Daylight savings feature - automatic, pre-programmable, Forward-backward seasonal time correction

With an average life of 100,000 hours LED displays are long lasting and reliable

OPERATION:

• Alternatively displays time, date and temperature with user selectable periods.
• 12 or 24 hour time display format
• Automatic brightness control for outdoor mounting (optional)
• Stand-alone operation with a typical accuracy of ±4 minutes/year at 25°C
• Multiple clocks can be connected in a system, when one is master and others are slaves.

CASES:

The SAT series clocks are available in cases suitable for surface wall mounting (default for single side models) and ceiling suspensions (default for double side models). These clocks are supplied as standard with cases finished in black fine plastified metal. Other colors and finishes are also available.

Power Supply:

230/110V 50/60Hz operation as standard. Internal battery maintains timekeeping in the event of a mains power failure.
